• headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
• frame C:62® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™
• size 29: S, M, L, XL, XXL
• Suspension fork RockShox SID SL Base, Tapered, 15x110mm, 100mm
• brake system Shimano XT BR-M8100, Hydr. Disc Brake (160/180)
• rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• shifters Shimano XT SL-M8100-IR, Direct Attach
• bottom bracket Shimano BB-MT500PA, 92mm Pressfit
• crankset Shimano FC-MT611, 32T, Boost
• cassette Shimano Deore CS-M6100, 10-51T
• chain Shimano CN-M6100
• Stem Newmen Evolution 318.4, 31.8mm
• handlebar Newmen Evolution SL 318.10, 760mm
• grips ACID React Pro
• wheelset Newmen Performance 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready CUBE Engineered By Newmen, 15mm, Boost, Centerlock
• front tyre Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25
• rear tyre Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25
• saddle ACID Nuance Lite
• seat post Newmen Evolution, 27.2mm

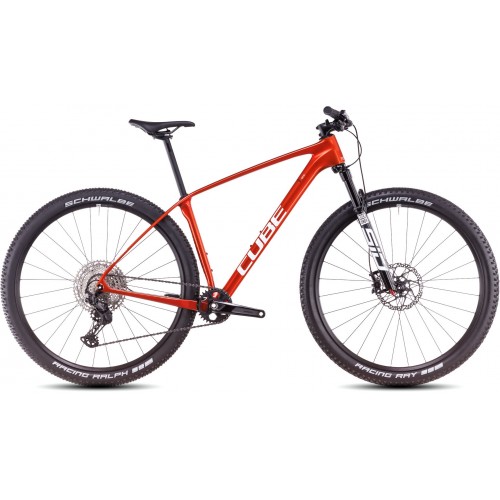

• colour electricorange´n´spice
• weight 10,8 kg
• Structural Weight 115 kg

Geometry

	S	M	L	XL	XXL
Seat tube	370	420	450	510	560
Top Tube Horizontal	578	598	618	638	658
Seat angle	74°	74°	74°	74°	74°
Head tube angle	68.5°	68.5°	68.5°	68.5°	68.5°
Chainstays	426	426	426	426	426
Head tube	97	107	117	127	142
Wheelbase	1088	1109	1130	1151	1173
BB-Height to Hub	65	65	65	65	65
Protrusion height – 80mm	767	801	821	859	866
Reach	405	422	439	456	472
Stack	612	621	630	639	653



Ergonomics

	S	M	L	XL	XXL
Length seat post	400	400	430	430	430
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Angle stem	6°	6°	6°	6°	6°
Crank length	170	175	175	175	175
Diameter tire maximum	749	749	749	749	749
Width tire maximum	60	60	60	60	60
Stem length	60	70	70	70	70
Handlebar width	760	760	760	760	760
